What is this for?
A handy article that might be useful when looking at weight saving.
| Engine Bay | ||
| Item | Weight kg |
Note |
| Crankshaft |
16 |
|
| Intake resonator box | 0.7 | No pipe work |
| Air conditioning system | 17.3 | 6.9 - Pump 2.6 - Chiller 3.1 - Radiator 1.6 - Pipe work 1.5 - Cooling fan 0.8 - Mounting brackets 0.6 - Liquid receiver 0.2 - Sensors etc ??? - Refrigerant |
| Catalytic converter | 10.9 | Aussie DP weighs 2.4 |
| Exhaust | 6.4 - Centre section | Scorpion exhaust weight: 1 - Front 4.5 - Centre 5 - Rear |
| Starter motor | 3.9 | |
| Passenger radiator fan | 2.6 | |
| Alternator bracket | 2.0 | |

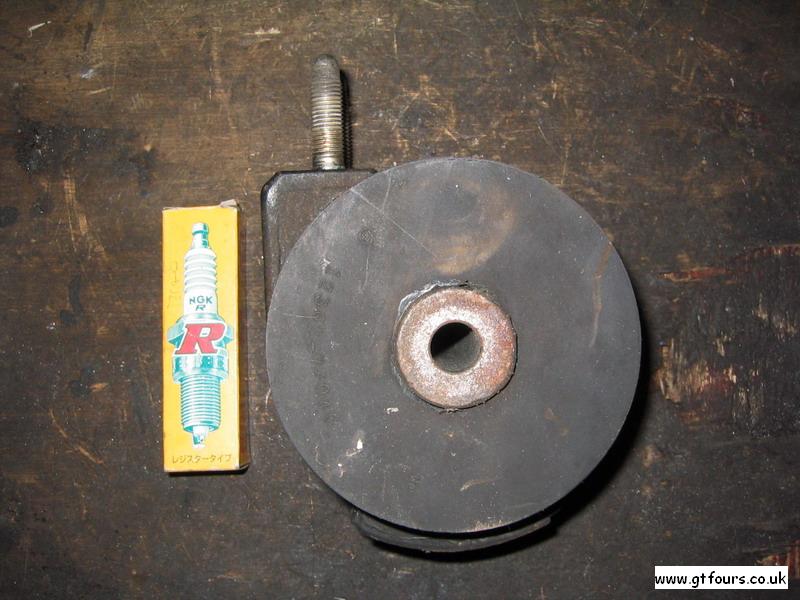

| Drivers side engine mount | 1.6 | |

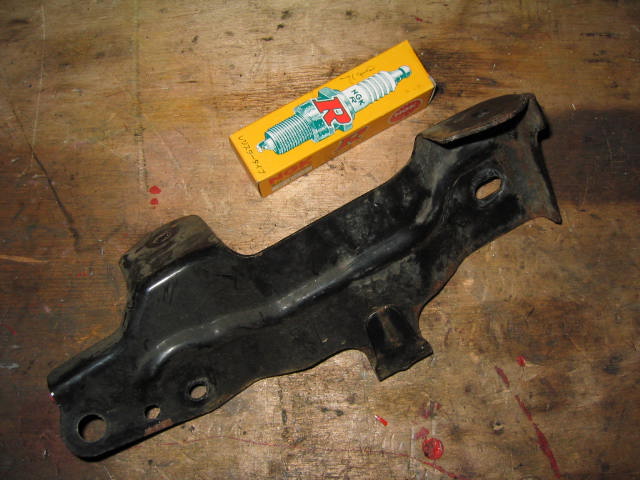

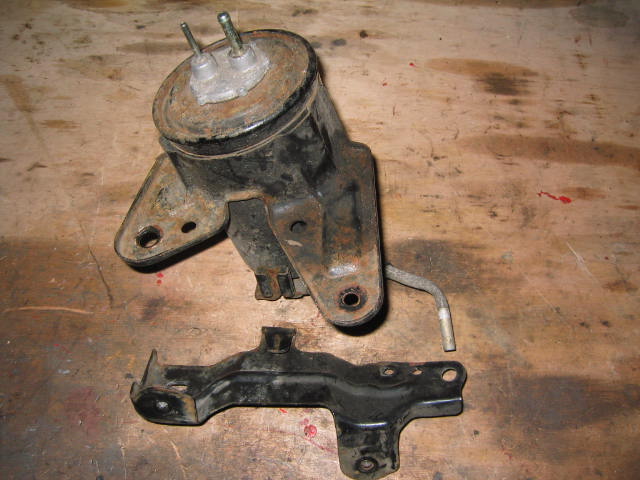

| Carbon canister and mounting bracket | 1.5 | 1.3 - Canister 0.2 - Mounting bracket |

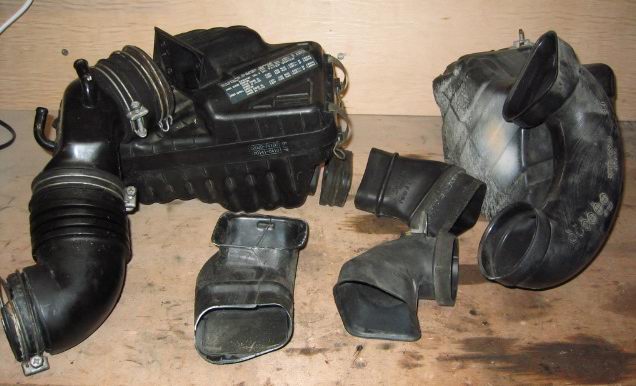

| Air intake box | 1.1 - with stock filter 0.79 - empty |
|
| Radiator overflow tank | 1.4 | With pipes |
| IC pump | 1.3 | With bracket 185 CS without bracket 2.0 |
| Air intake box to turbo pipe work | 1.0 | |
| EGR system | 1.0 | Pipework, VSVs and bolts |
| Intake manifold support struts | 0.7 | |

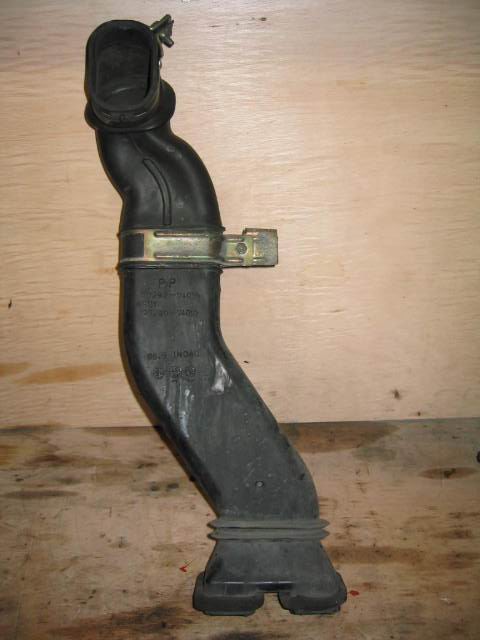

| Alternator cooling duct | 0.5 | |

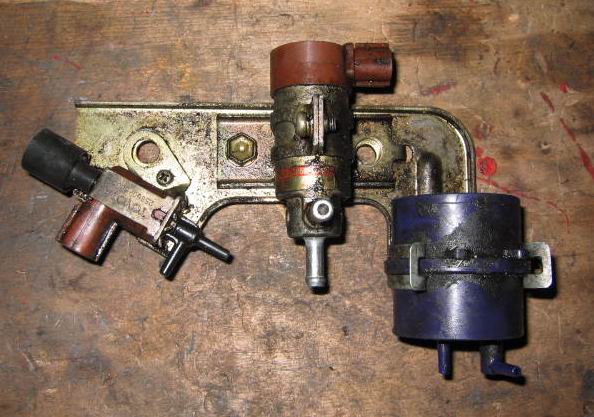

| TVSV, TVIS VSV and mounting plate | 0.5 | |
| IC hard pipes above gearbox | 0.4 | |
| Battery clamp and plastic under tray | 0.4 | |

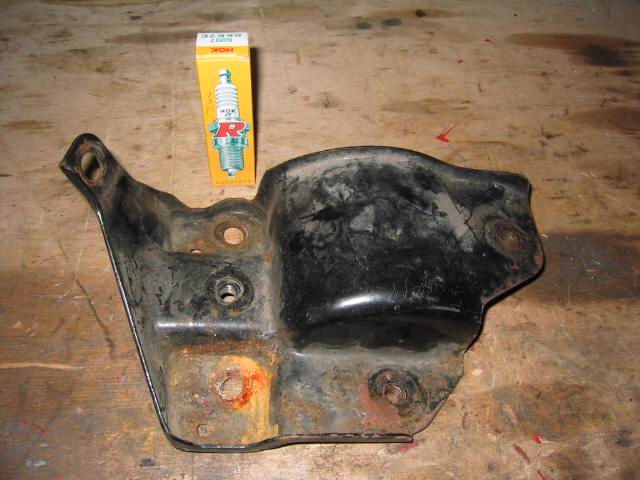

| Gearbox mount cover | 0.4 | |
| Pre air filter pipe work and fitting etc | 0.4 | |
| Cambelt top cover | 0.3 | |
| Rear wheel disk backing cover | 0.3 | |
| TVIS components | 0.2 | Butterfly valves etc |
| Transmission | ||
| Item | Weight kg |
Note |
| Gearbox | 86.4 | |
| Rear diff | 26.1 | |
| Propshaft | 20 | |
| Steering rack | 9.4 | With pipe work |
| Rear drive shaft | 7.4 | |
| Front hub | 5.8 | Without shielding |
| Brakes | ||
| Item | Weight kg |
Note |
| Front calliper | 5 | Twin pot, without pads |
| Rear calliper | 2.8 | Single pot, without pads |
| General | ||
| Item | Weight kg |
Note |
| Radiator |
5.4 |
|
| Radiator fan |
2.6 |
|
| Spare tyre cover |
0.7 |
|
| Rear diff mount |
0.95 |
|
| Front wing body kit |
0.21 - Upper strip |
Per side |
| Front indicator |
0.36 |
|
| Drivers seat | 22 | |
| Passenger seat | 10 | |
| Headlight | 4.5 | Complete headlight unit with motor |
