Corolla WRC

Side view Another side view Front view Another front view
Engine bay Engine bay side view Engine bay side view With turbo heat shield removed

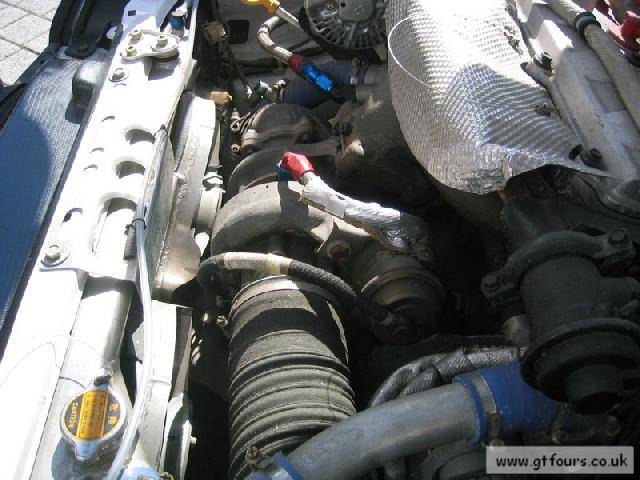

A closer view of the turbo area The name plate on the turbo says "CT20BRB" Turbo actuator top Intake pipe work
The exhaust side still features what seems to be a 3" quick release elbow Note the large intake air box... ...and the side feed inlet manifold Close up of the throttle body and intake manifold
Another view of the throttle body area The anti-lag valve A number of the sensors, injectors etc are not fitted to this car Part of the ignition system
Part number of the coils fitted for the ignition The intercooler pipe work leaving the exit of the turbo... ..but the intercooler is missing! The vacant spot at the front of the car
The oil filter adaptor between the filter and the block Seems that those blanking plugs fitted to the 205 style sump have been utilised Part of the cooling system is the header tank... ...the path of the coolant lines...
...and more... ...a revised thermostat housing is fitted ...another picture The entry to the radiator also seem to have been revised when compared to other GT4s

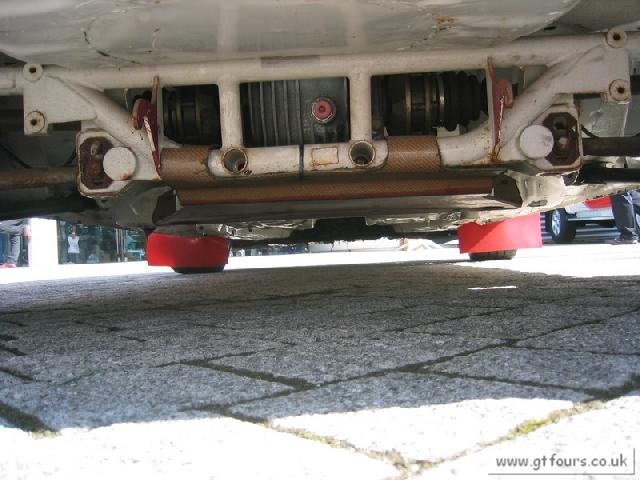

A lightweight alternator pulley? Rear left wheel and suspension The supporting framework for the suspension... ...and the rear diff area heavily revised...
No propshaft! Missing just like several other parts The rear right wheel The spec sheet Note the compression ratio and most interesting of all the diameter of the cylinders in the block...
