| 185 engine bay. Intercooler removed... |

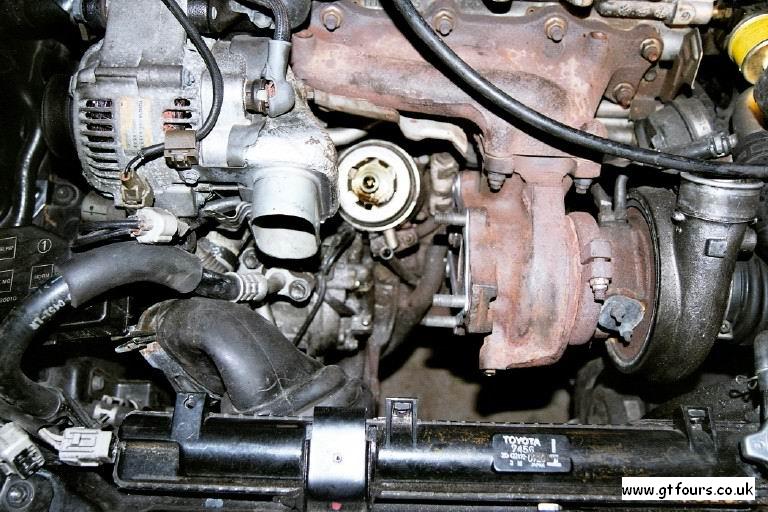

...heat shielding removed... |

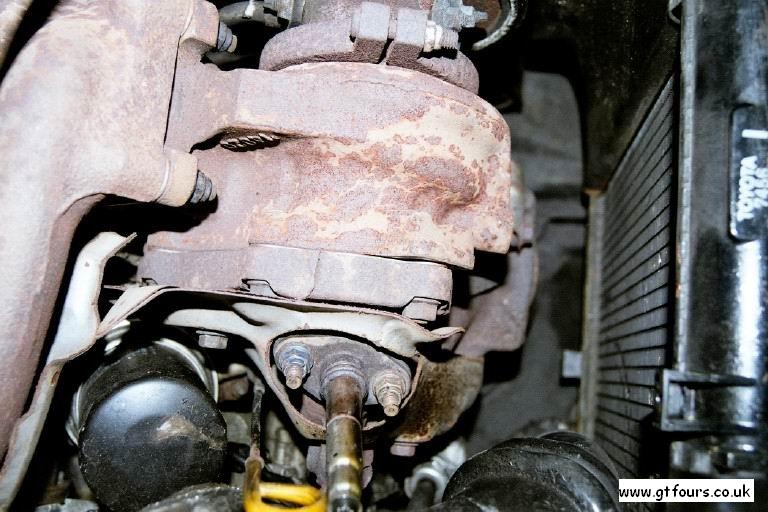

...the side view clearly shows the lambda sensor and the cat |

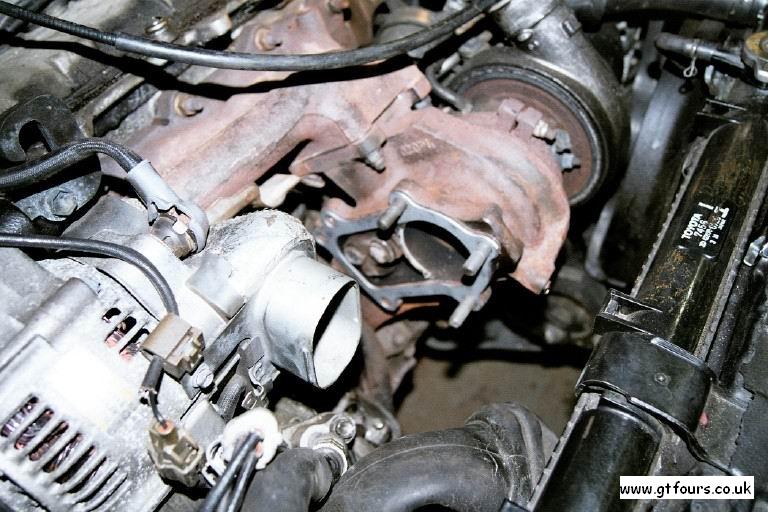

With cat removed |
| |
 |
 |
 |
 |
| Side view - note the twin wastegate exit setup |

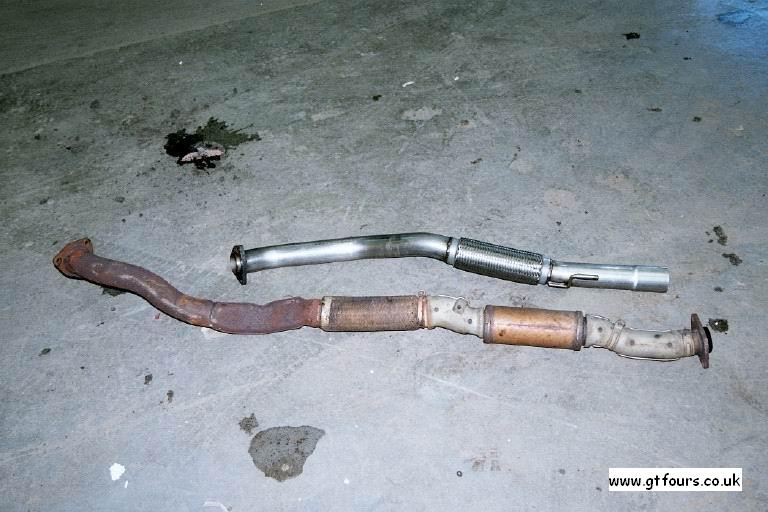

The cat compared to the much lighter Aussie downpipe |

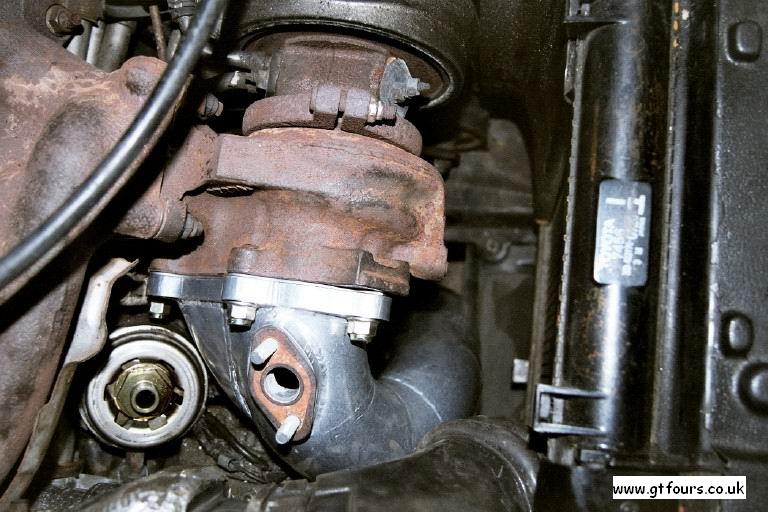

The Aussie fitted |

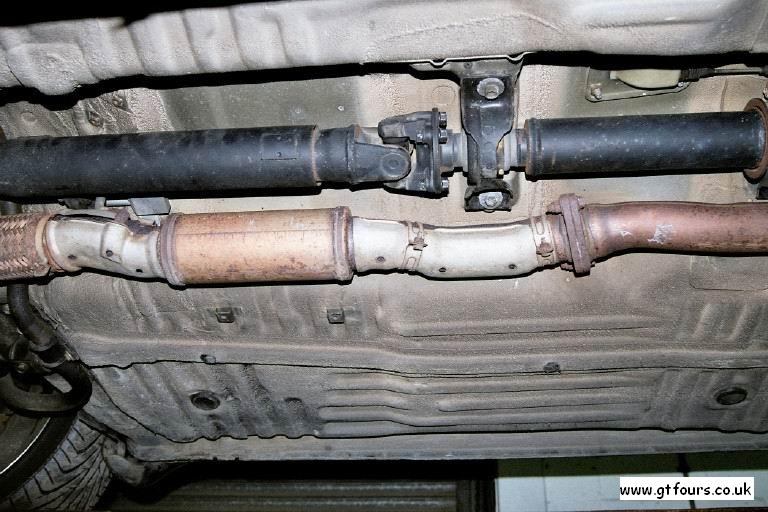

The first exhaust section bolts onto the cat... |
| |
 |
 |
 |
 |

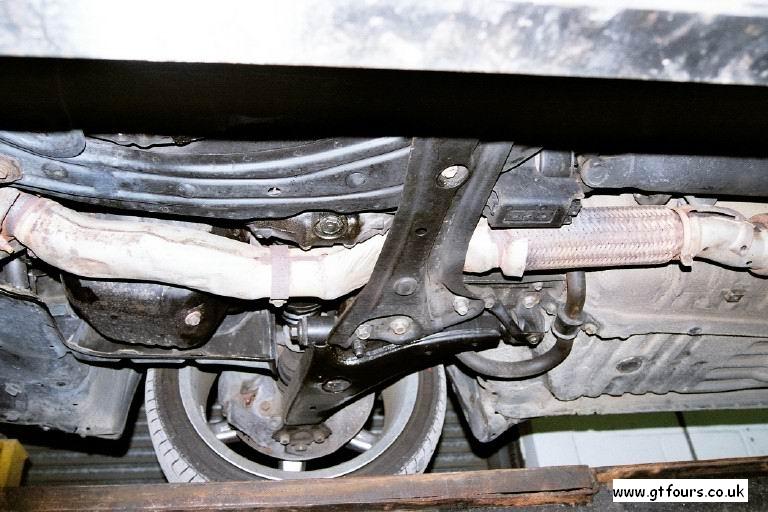

| ...runs along and over a cross member - note the heat shielding |

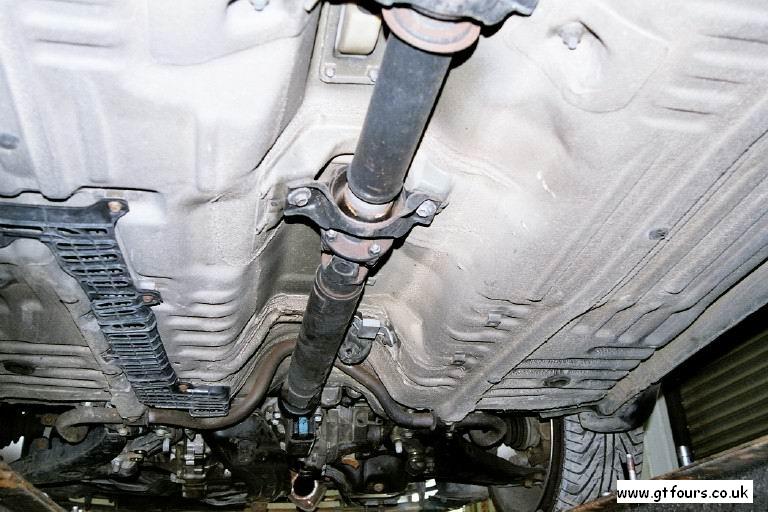

runs back next to the propshaft... |

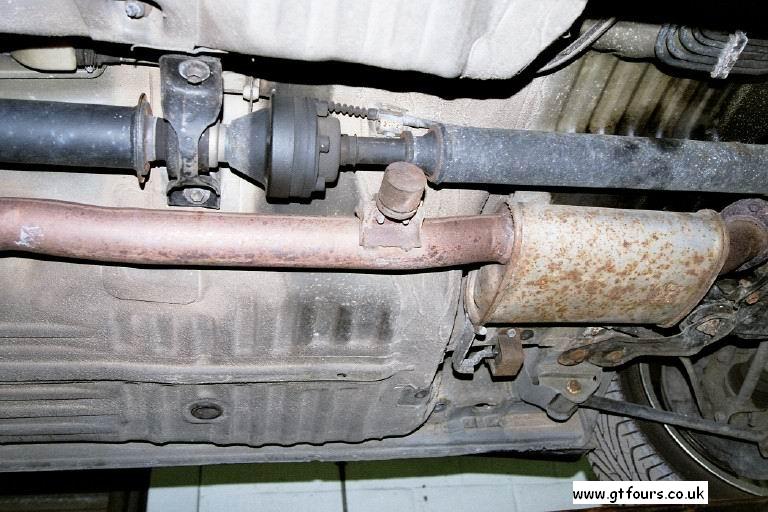

...the rear box - note the CV joint in the propshaft |

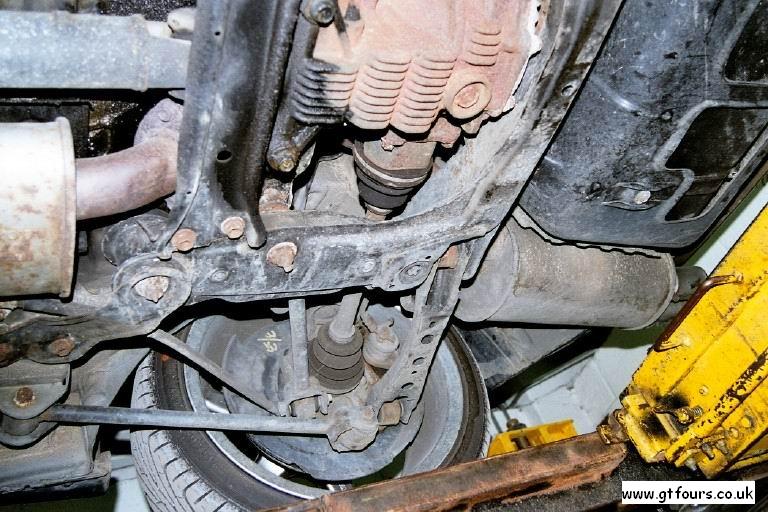

This is the tricky bit, running the exhaust over the rear driveshaft etc |
| |
 |
 |
 |
 |
| Access is awkward |

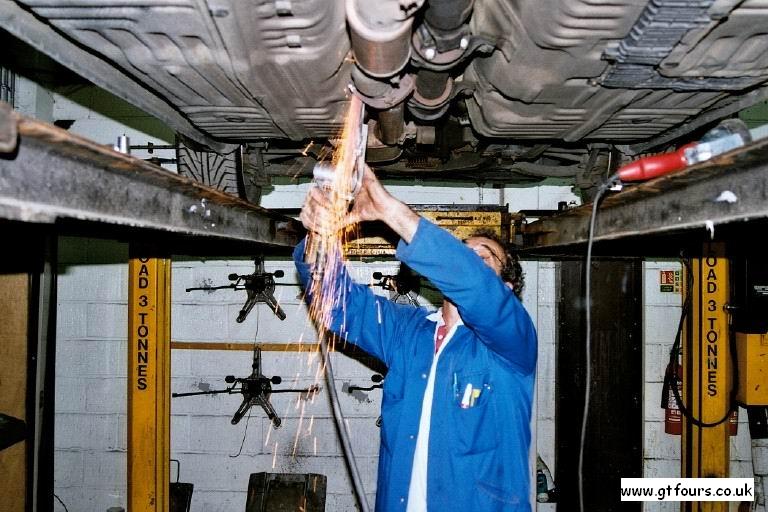

Some "help"! |

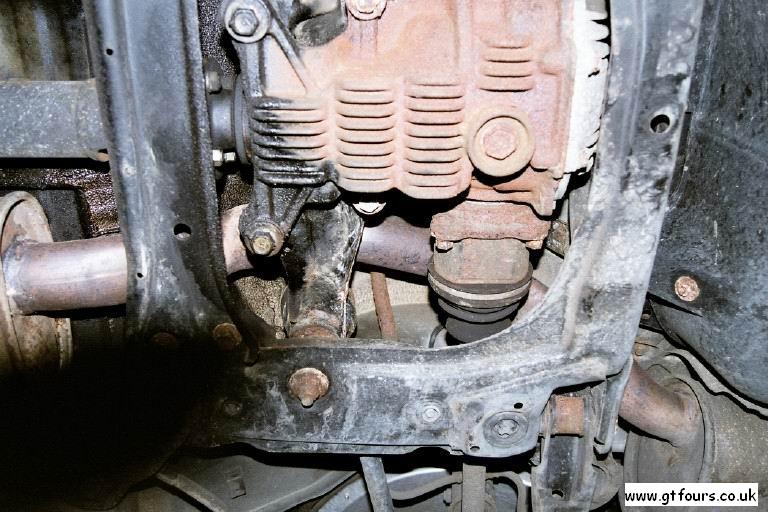

The exhaust has to travel through this small gap, without knocking! |

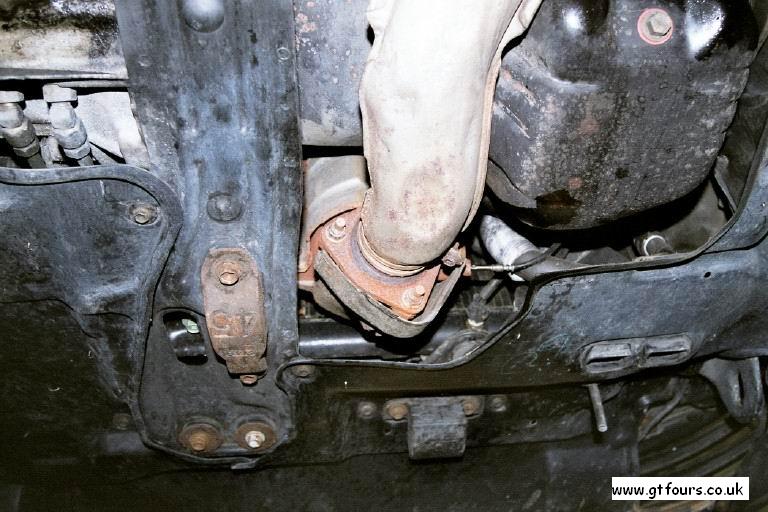

With the flex section removed you cat see the exit from the cat, and how close it runs to the sump |
| |
 |
 |
 |
 |

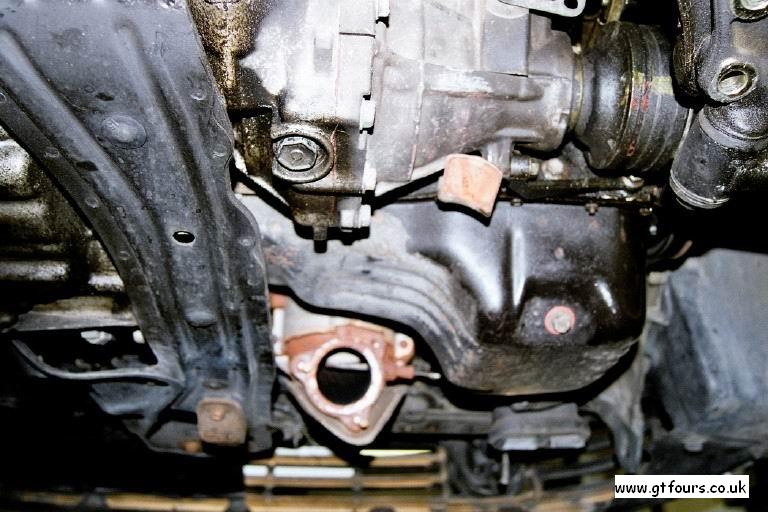

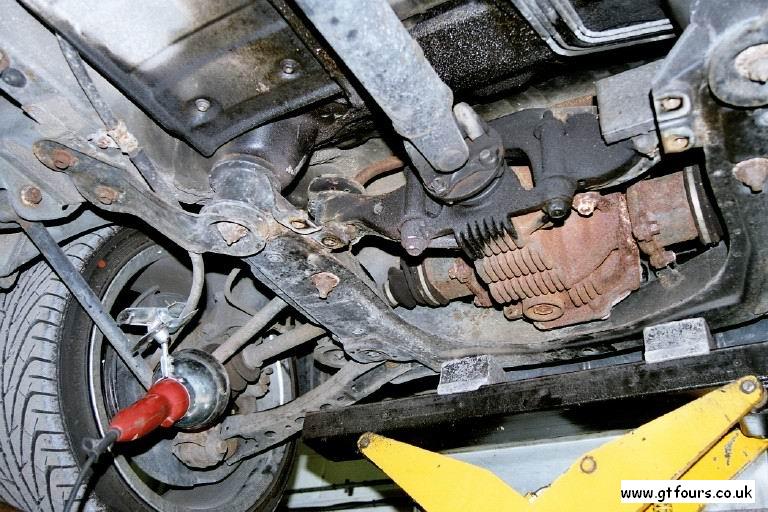

| With exhaust removed |
Going from the front of the car we have, the flexi section... |
...then the mid section... |
...then the tail pipe |
| |
 |
 |
 |
|
| The fitted exhaust, note how tight access is and the flexi section |

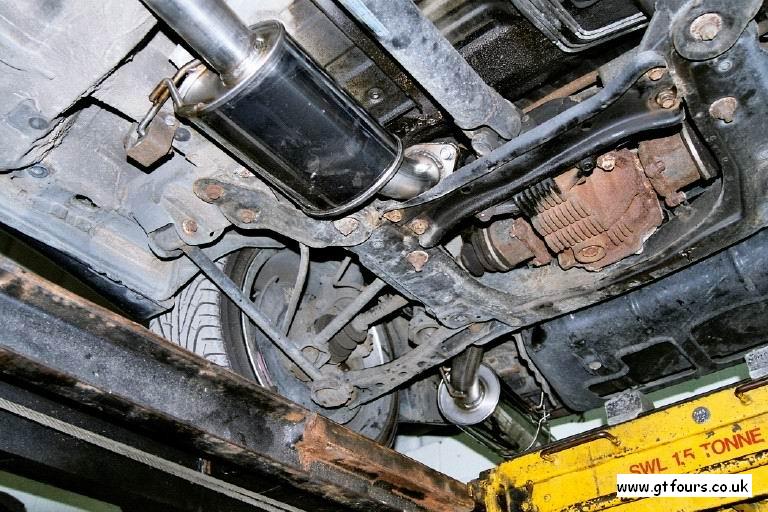

The new exhaust running over the rear drive shaft |

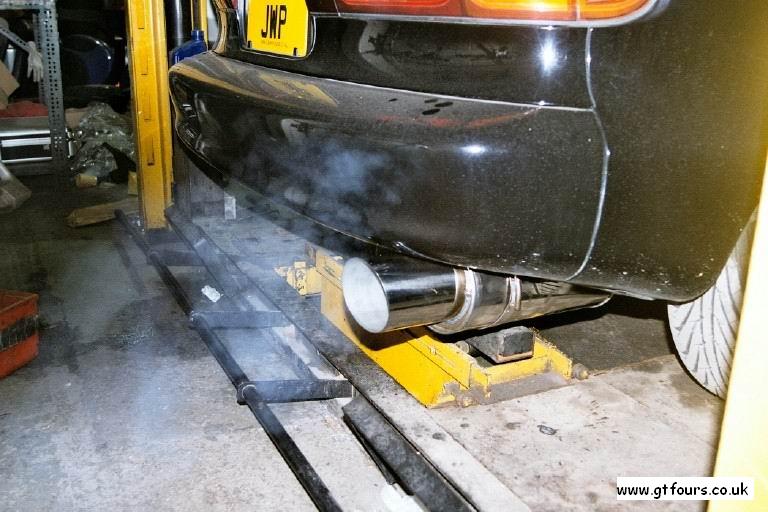

Tucked nice and close to the rear bumper |
|
