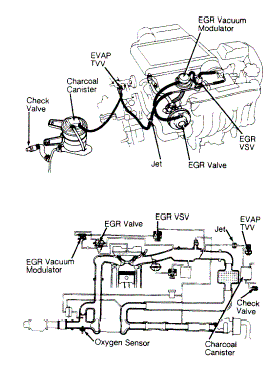

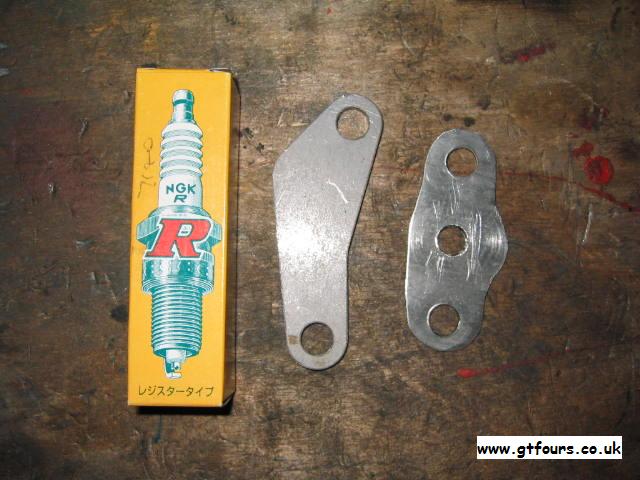

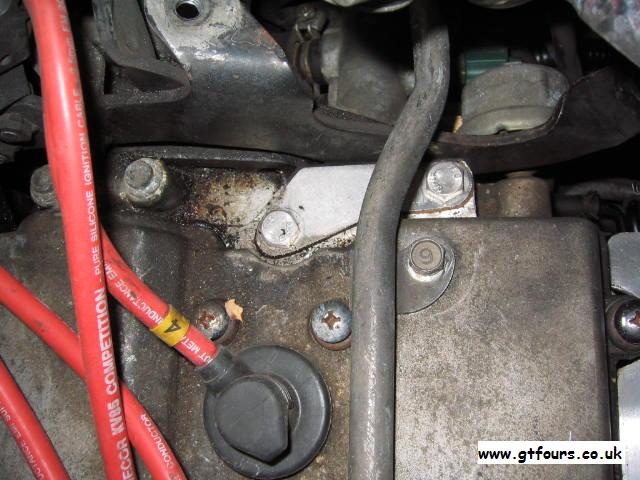

| 165 actuator and EGR gizmo | 2 blanking plates need to be manufactured to block the holes left behind when removing the EGR system. The plate on the right was drilled to accept a pressure sensor. This should not have a hole in the plate if the EGR is simply removed | Blanking plate installed over the exhaust gas outlet adjacent to the rocker box cover, the other hole to blank is on the right hand side of the intake manifold. Note this "hole" leads to No.4 exhaust port | 185 EGR layout and connections. The basic concept is the same for all the GT4s |
