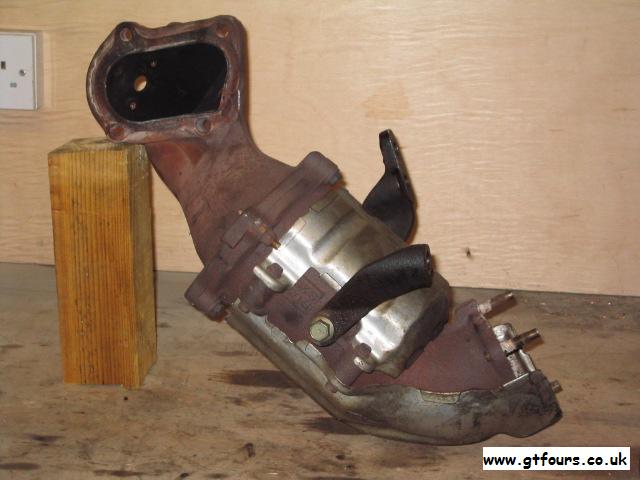

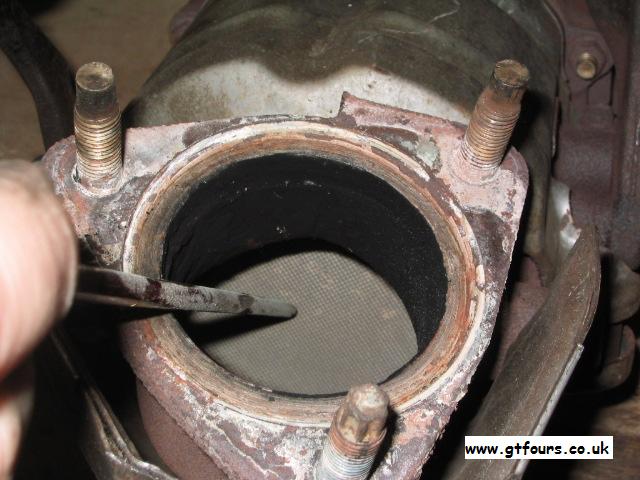

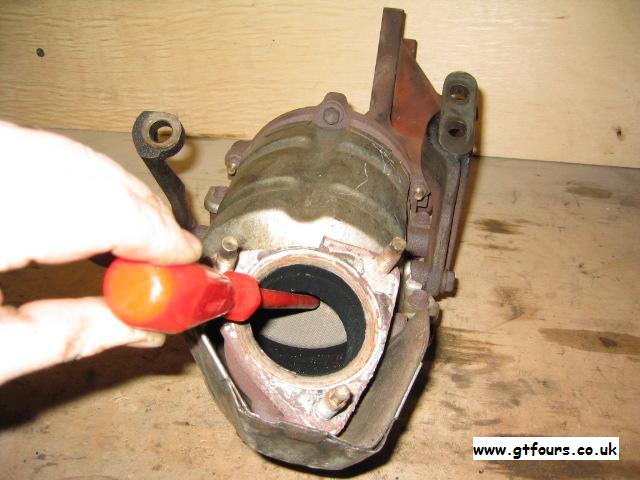

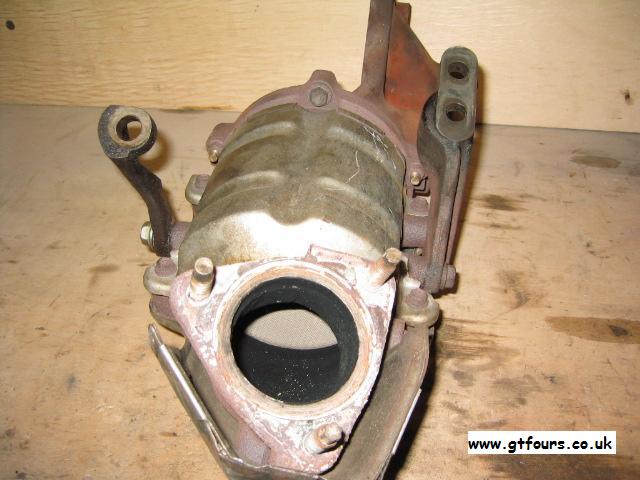

| Side view. Note the 2 cat supports and the 4 stud mounting for the 165 | End view | Note restrictive mesh | Mesh close up |
 |
 |
 |
 |

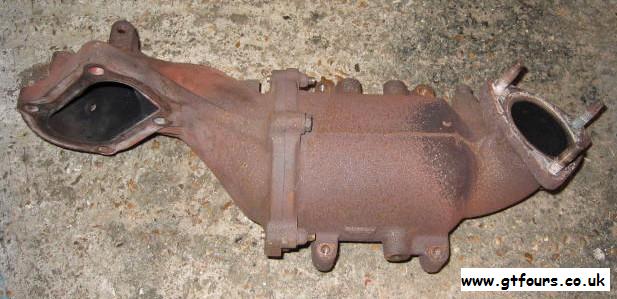

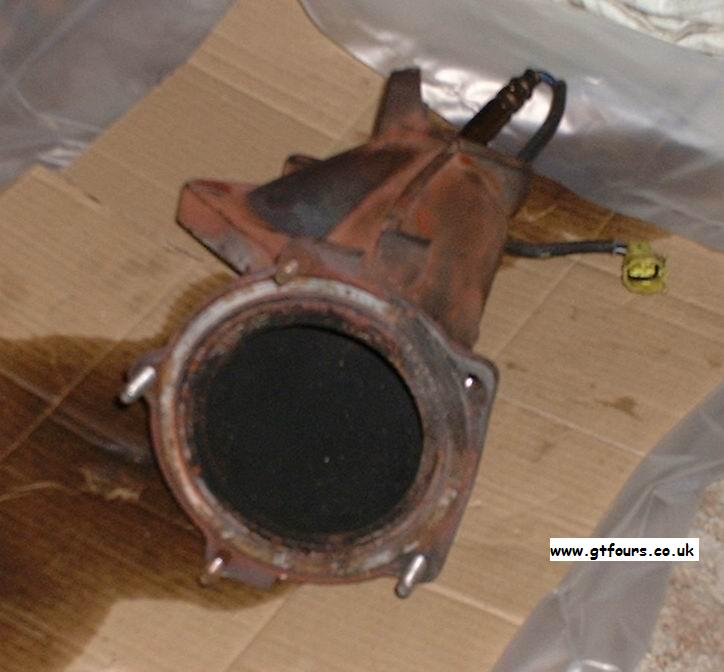

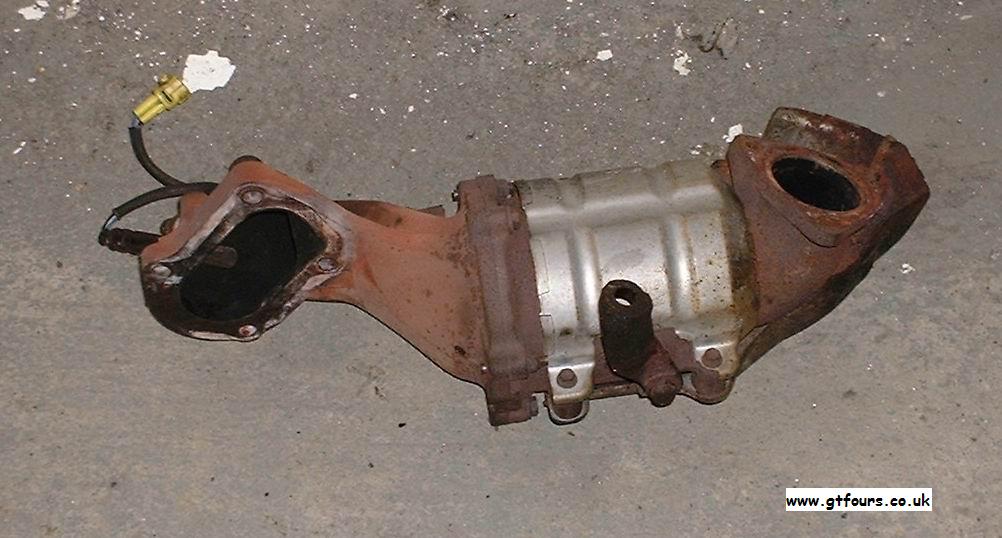

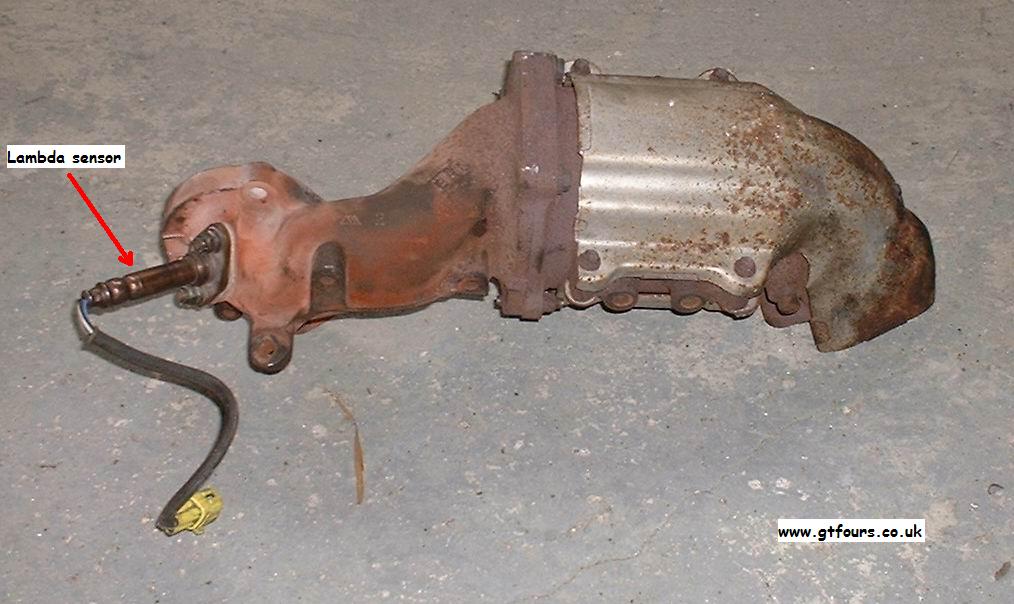

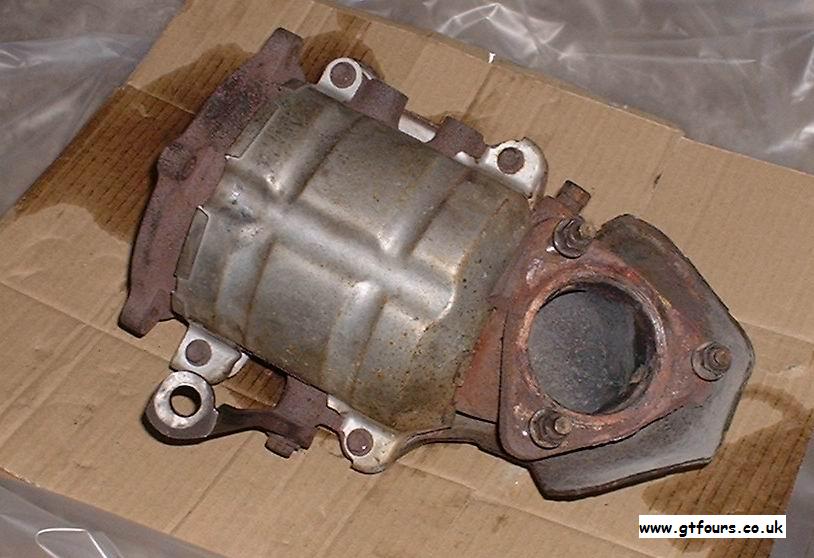

| With the heat shielding removed | With heat shielding | Rear view with lambda sensor attached | The elbow separated from cat |
 |
 |
 |
 |

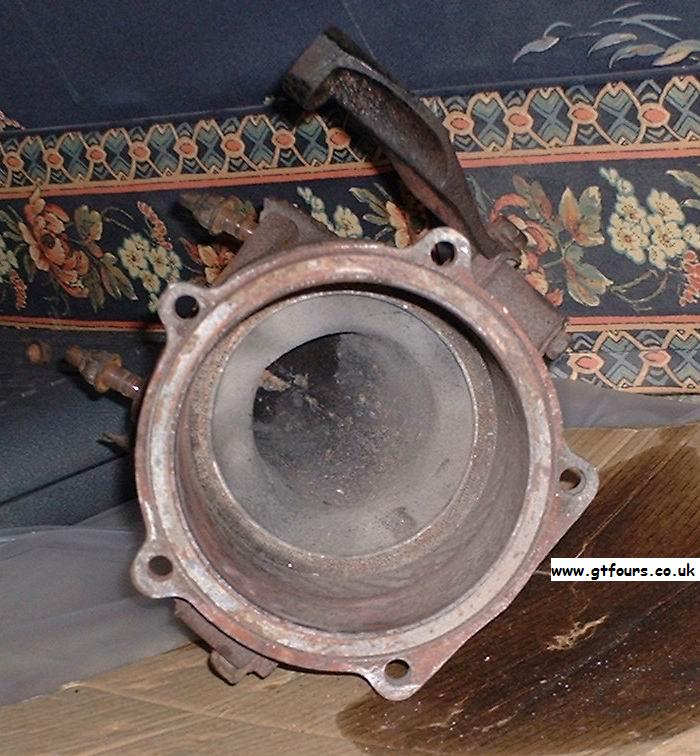

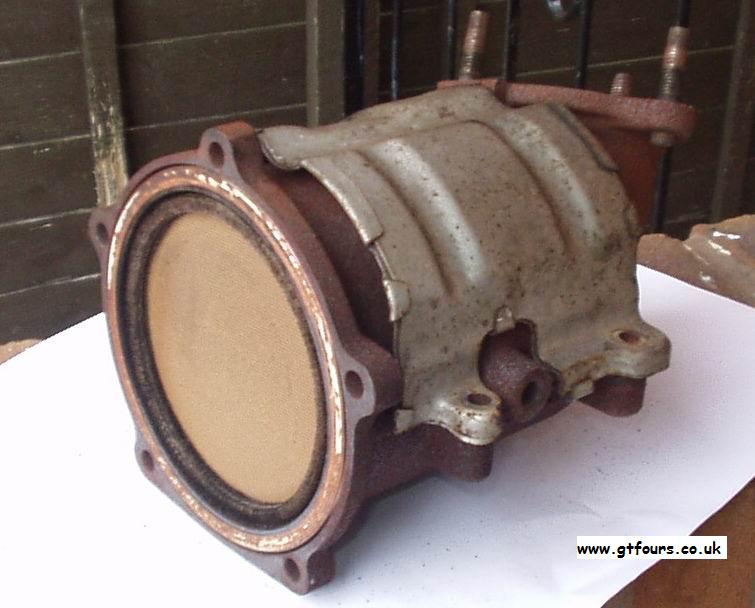

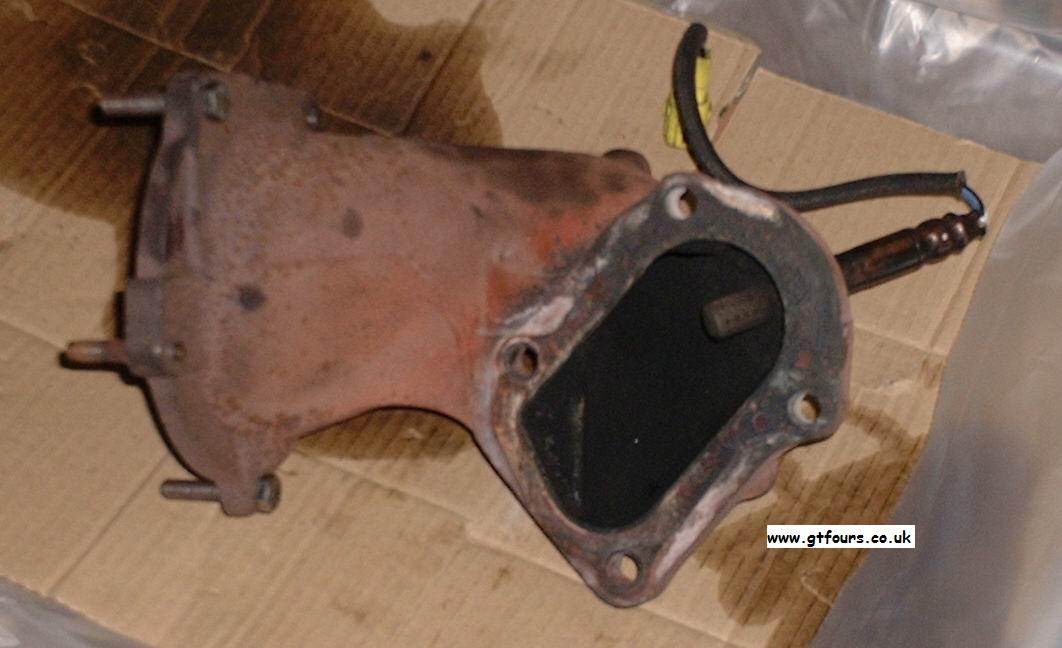

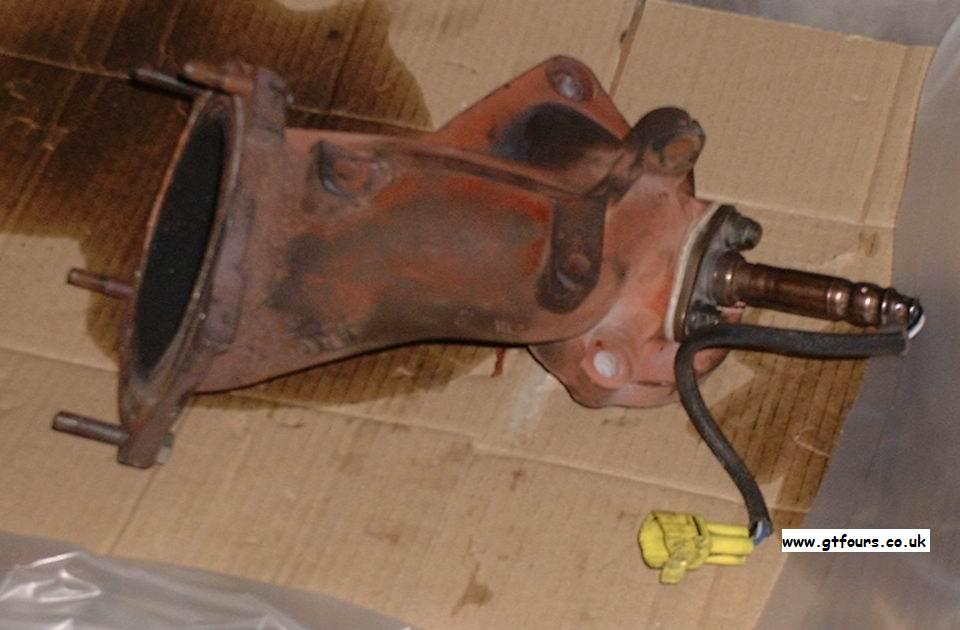

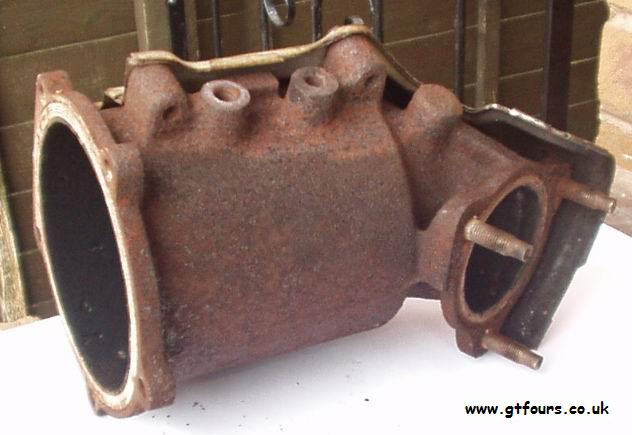

| Elbow | Elbow | Lower half | Lower half with internals removed |
 |
 |
 |
 |

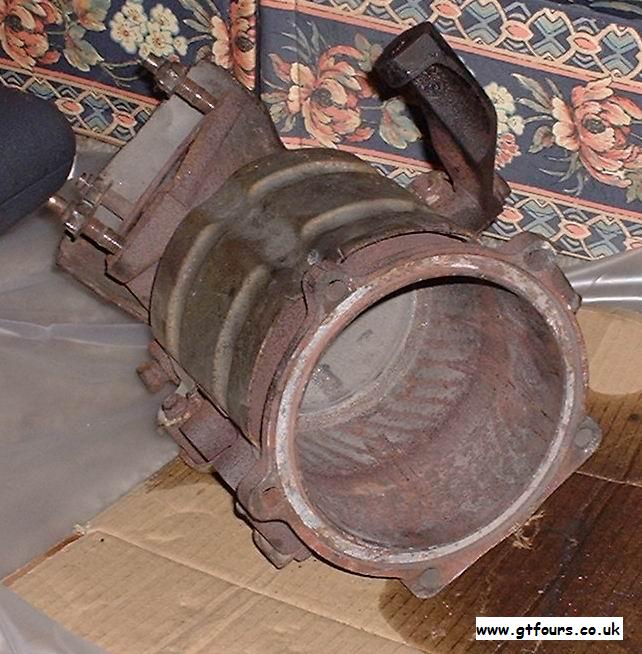

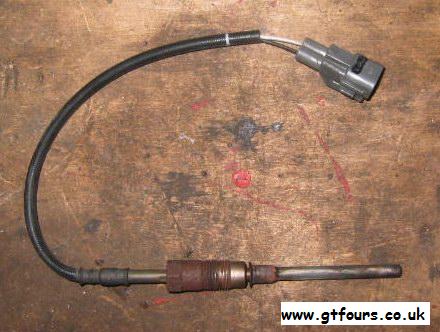

| Lower half gutted | 205 cat temperature sensor. This can be removed from the car without any error codes | With the turbo elbow removed the innards of the cat are clearly visible | A gutted cat! |
